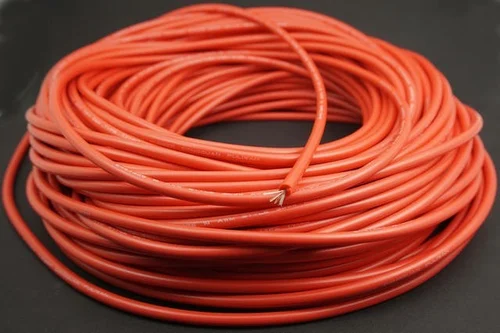

High voltage wires and cables are designed to transmit electrical power at higher voltage levels than typical household or low-voltage cables. These cables are engineered to handle the increased electrical stress and potential hazards associated with high voltage transmission. They are used in various applications where the demand for power transmission over long distances or between power generation and distribution systems requires higher voltage levels.

Key Characteristics of High Voltage Wires and Cables:

Insulation: High voltage cables have specialized insulation materials that can withstand the higher voltages and electrical stresses without breakdown. Proper insulation prevents electrical leakage and ensures safety.

Shielding: Some high voltage cables include shielding to mitigate electromagnetic interference and reduce the risk of electrical faults.

Stranding: To enhance flexibility and reduce stress concentration, high voltage cables often have multiple strands of conductors.

Corona Suppression: Corona discharge is a phenomenon that can occur at high voltage levels, causing energy losses and interference. Some high voltage cables are designed to suppress corona discharge.

Durability: High voltage cables are designed to withstand environmental factors such as temperature variations, moisture, and physical stress due to their application in outdoor and demanding environments.

Applications of High Voltage Wires and Cables:

Power Transmission Lines: High voltage cables are used to transmit electricity over long distances from power generation sources (such as power plants) to distribution substations.

Substations: These cables connect different parts of a power substation, where voltage levels might be stepped up or down for distribution or transmission purposes.

Power Distribution: High voltage cables are used within distribution networks to deliver electricity from substations to industrial facilities, commercial buildings, and residential areas.

Renewable Energy: Wind farms, solar power plants, and other renewable energy sources often use high voltage cables to transport generated power to the grid.

Industrial Facilities: In industries with high power demand, such as manufacturing plants, high voltage cables are used to deliver electricity to equipment and machinery.

High Voltage Testing: High voltage cables are used in testing and measuring equipment to simulate high voltage conditions for testing purposes.

It’s important to note that working with high voltage wires and cables requires specialized knowledge, equipment, and safety precautions due to the increased risks associated with higher voltage levels. Improper handling can result in serious injury or damage. In many cases, these cables are installed and maintained by professionals with expertise in high voltage systems and electrical engineering.
