RF Coaxial Cables

RF (Radio Frequency) coaxial cables are specialized types of cables designed for transmitting high-frequency signals with minimal signal loss and interference. They are widely used in various applications that require the transmission of radio frequency signals, including telecommunications, broadcasting, networking, aerospace, and more. The “coaxial” design of these cables provides excellent shielding against electromagnetic interference, making them suitable for high-quality signal transmission.

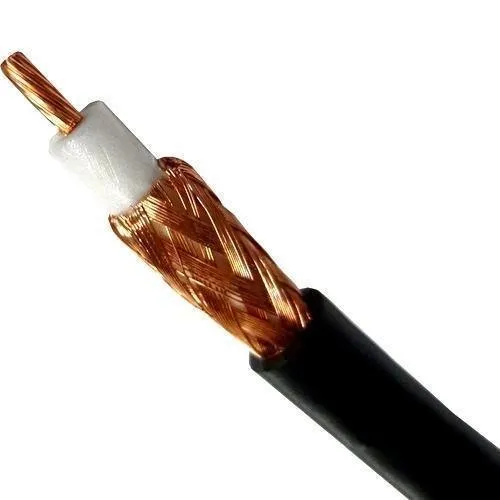

Components of RF Coaxial Cables:

Center Conductor: The central wire within the cable that carries the electrical signal. It is typically made of a conductive material, such as copper or aluminum.

Dielectric Material: Surrounding the center conductor, the dielectric is an insulating material that maintains separation between the center conductor and the outer shielding. It helps prevent signal leakage and interference.

Shielding: The cable’s outer layer consists of a metallic shield, usually braided or foil, that protects the signal from external electromagnetic interference and prevents signal loss.

Outer Jacket: This layer provides physical protection to the cable and its internal components. It also helps to protect the cable from environmental factors such as moisture and abrasion.

Types of RF Coaxial Cables:

There are various types of RF coaxial cables, each with specific characteristics designed for particular applications. Some common types include:

RG-6: Used in cable television (CATV) and satellite TV installations for carrying video and audio signals. It’s also used for data transmission in networking applications.

RG-58: Often used for low-power RF applications such as connecting antennas to radio equipment and amateur radio setups.

RG-213: Suitable for higher-power applications due to its larger diameter and lower signal loss compared to RG-58.

RG-8: Designed for more demanding applications, such as long-distance communications and broadcasting.

LMR (Low-Loss) Cables: These cables are designed to minimize signal loss and are commonly used in wireless communication systems and networking applications.

Applications of RF Coaxial Cables:

Television and Broadcasting: RF coaxial cables are used to transmit television signals from antennas to TVs, cable boxes, and satellite receivers.

Telecommunications: In wireless communication systems, coaxial cables are used to connect antennas, cell towers, and communication equipment.

Networking: Coaxial cables have been used historically for Ethernet networks, although they have largely been replaced by twisted pair cables. However, they are still used in certain networking environments.

Aerospace and Defense: RF coaxial cables are used in radar systems, avionics, military communication, and aerospace applications.

Medical Imaging: In some medical equipment, such as MRI machines and X-ray systems, coaxial cables are used for signal transmission.

Test and Measurement: Coaxial cables are used in test and measurement equipment to connect signal sources, oscilloscopes, and other testing instruments.

RF coaxial cables are crucial components for ensuring the reliable transmission of radio frequency signals across a wide range of applications. The selection of the appropriate cable type depends on factors such as frequency range, power requirements, signal quality, and environmental conditions.
