Multicore Cables

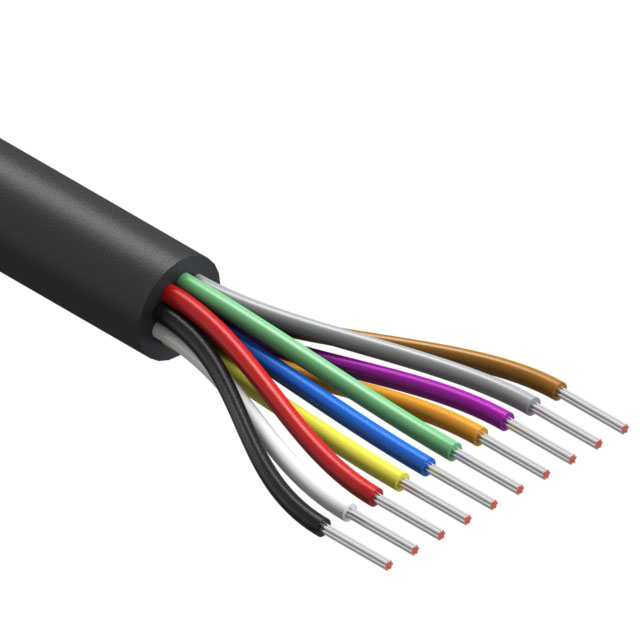

Multicore cables, also known as multi-conductor cables or multi-pair cables, are types of cables that contain multiple insulated conductors within a single outer jacket. Each conductor within the cable can carry a separate electrical signal, allowing for the transmission of multiple signals or data streams simultaneously. These cables are commonly used in various applications where multiple connections need to be made within a single cable assembly.

Key Features of Multicore Cables:

Multiple Conductors: Multicore cables consist of two or more insulated conductors bundled together within a single outer jacket. The conductors can be twisted pairs, triads, quads, or more, depending on the cable design.

Flexibility: Despite containing multiple conductors, these cables are designed to remain relatively flexible, allowing for easy routing and installation.

Color Coding: To differentiate between the conductors and facilitate easy identification, multicore cables often use color-coded insulation.

Shielding: Depending on the application, multicore cables may have shielding to reduce electromagnetic interference (EMI) and ensure signal integrity.

Applications of Multicore Cables:

Audio and Video: Multicore cables are widely used in audio and video production setups to transmit signals from microphones, instruments, cameras, and other sources to mixers, recording equipment, and displays.

Telecommunications: These cables are used for connecting telecommunications equipment, such as telephone systems, intercoms, and networking devices.

Control Systems: In industrial settings, multicore cables connect sensors, actuators, and control devices to controllers or automation systems.

Data Transmission: Multicore cables are used in data communication applications where multiple data streams need to be transmitted, such as in networking, computer peripherals, and data centers.

Automotive Wiring: In automotive applications, multicore cables are used to connect various electrical components within a vehicle, such as sensors, switches, and lights.

Medical Devices: Multicore cables are used in medical equipment to connect sensors, electrodes, and other components to monitoring or diagnostic devices.

Security Systems: For security systems, such as CCTV installations, multicore cables connect cameras, sensors, and control panels.

Stage and Event Production: In stage lighting and event production, multicore cables connect lighting fixtures, audio equipment, and control consoles.

Robotics and Automation: In robotics and industrial automation, these cables connect different components of robotic arms, sensors, and control systems.

Multicore cables simplify installations by consolidating multiple connections into a single cable, which can reduce clutter and save space. However, it’s important to select the appropriate cable with the right number of conductors and necessary shielding based on the specific requirements of the application to ensure reliable signal transmission and minimize interference.
